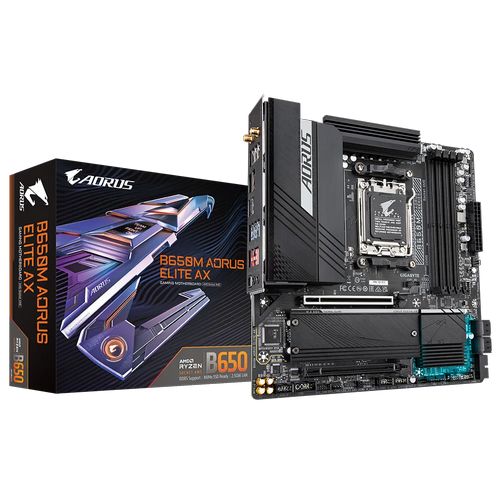

Gigabyte B650M AORUS ELITE AX matična ploča, Socket AM5, AMD B650, ATX/mATX
Stavi u listu želja
Postavi obavijest o cijeni
Povijest najniže cijene
Podijeli
Prijavi grešku
Gigabyte GA-B650M AORUS ELITE AX, DDR5, AM5
189,00 €
Gigabyte Mainboard Desktop B650M AORUS ELITE AX(AM5, 4x DDR5, mATX)
CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.) Chipset AMD B650 Memory Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices USB CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back pane Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks I/O...
191,12 €
Matična ploča Gigabyte B650M AORUS ELITE AX, AMD B650, AM5, mATX, DDR5
• Model: B650M AORUS ELITE AX• Podržani procesori: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors• ChipsetAMD B650• Memorija: 4x DDR5 DIMM• Mreža:2.5GbE LAN & Wi-Fi 6E 802.11ax• I/O konektori: • 4 x USB 2.0/1.1 ports• 2 x USB 3.2 Gen 2 Type-A• 3 x USB 3.2 Gen 1 Type-A port• 1 x USB Type-C with USB 3.2 Gen 2 support• 1 x PS/2 keyboard/mouse port• 1 x DisplayPorts• 1 x HDMI port• 1 x RJ-45 port• 3 x audio jacks• Dimenzije: Micro ATX Form Factor; 24.4cm x 24.4cm• Više informacija na: https://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-AX-rev-10-11/sp#sp
223,25 €
GIGABYTE Mainboard Desktop B650M AORUS ELITE AX (AM5, 4xDDR5 128GB, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 4xSATA, 1xM.2 PCIe 5.0, 2xM.2 PCIe 4.0, 2xUSB 3.2 Gen2, 5xUSB 3.2 Gen1, 4xUSB2.0, 1xUSB 3.2
Antenna: 2 , Audio Integrated: yes , Audio Interface: 3 (3.5-mm minijack) , Audio Output Mode: 7.1 Channel Surround , BIOS Features: Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM , BIOS Type: AMI , Bluetooth: Bluetooth 5.2 , Chipset: AMD B650 , Compliant Audio Standards: High Definition Audio , CPU Maximum Quantity Supports: 1 , CPU podnožje: Socket AM5 , Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps , Device Location: Integrated , DisplayPort: 1 , EAN Code: 4719331849399 , Form Factor: ATX , HDMI: 1 (HDMI (Type A)) , Height (mm): 244 mm , Included Accessories: Quick Start Guide Screws , Integrated: Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4)Storage Controller:Supports: Level 0, Level 1, Level 10PCI Express 5.0 x4 (1 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10PCI Express 4.0 x4 (2 x M.2 (Key M))Wi-Fi Controller:1 x M.2 (Key E) , LAN Integrated: yes , LAN: 1 (RJ-45) , Mainboard Features: Fan Speed ControlRGB LED , Maximum Installable System Memory Storage Capacity: 128 GB , Memory Features: Two DDR Channels Unbuffered Dual Rank Single Rank XMP AMD EXPO , Memory Form Factor: DIMM 288-pin , Memory Slot Total Quantity: 4 , Memory Speed: 5200MHz(PC5-41600) , Pack Weight Brutto (kg): 2 kg , Pack Weight Netto (kg): 1.5 kg , Package Type: Retail , Packs in Box: 8 , PCI Express 3.0 x16: 2 , PCI Express 4.0 x16: 2 , Pieces in pack: 1 , Provides Error Checking Method: Non-ECC , Retail Packaging Net Weight Carton: 0.3 kg , Retail Packaging Net Weight Plastic: 0.2 kg , Software Included: Norton Internet Security (OEM version) , Supported Operating System: Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit , Supports Central Processor Unit: AMD Ryzen 7000 Series , USB 2.0: 4 (USB 2.0 (type A)) , USB 3.2 Gen 1: 5 (USB 3.2 (type A)) , USB 3.2 Gen 2: 1 (USB 3.2 (type C)); 2 (USB 3.2 (type A)) , Video Controller Integrated: yes , Vrsta memorije: DDR5 SDRAM , Warranty Products Returnable: Yes , Warranty Term (month): 36 month(s) , Warranty validation Criteria: Serial Number , Width (mm): 305 mm , Wi-Fi: IEEE 802.11ax Wi-Fi 6E , WLAN: M.2
249,00 €
HopHop
Matična ploča GIGABYTE B650M AORUS ELITE AX (DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WiFi 6E, AM5 mATX)
BASE: AMD AM5FOR PROCESSORS: AMD RYZEN 7000 SeriesFORMAT: mATX format 24.4 cm x 24.4 cmCONNECTION CHIP: AMD B650MEMORY:4 x DDR5 DIMM non-ECC 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz (depending on process
231,57 €
- Raspoloživo, isporuka odmah u trgovini
- Raspoloživo, isporuka do 2 dana po uplati
- U dolasku, po narudžbi
- Raspoloživost potrebno provjeriti
- Nije raspoloživo
