MSI PRO B650-S WIFI matična ploča, Socket AM5, AMD B650, max. 256 GB, ATX
Stavi u listu želja
Postavi obavijest o cijeni
Povijest najniže cijene
Podijeli
Prijavi grešku

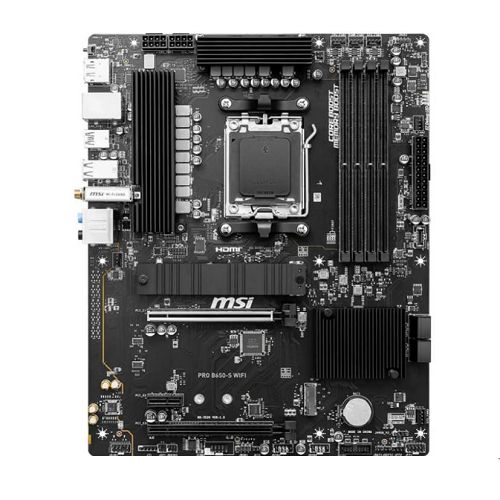

MSI PRO B650-S WIFI
MSI PRO B650-S WIFI tip matične ploče sa Socket-AM5 utičnicom, AMD B650 čipsetom, video karticom integriranom u procesor, 4 DDR5 memorijske utičnice (max 192GB). 4 USB 2.0 porta, 6 USB 3.0 porta, 4 USB 3.1 porta.
165,56 €
MSI PRO B650-S WIFI ATX matična ploča AM5 DP/HDMI/BT
170,00 €
MSI B650-S WiFi, AMD B650, AM5, DDR5, 7E26-003R
Form factor ATX Plinth AMD AM5 Chipset AMD B650 CPU Compatibility Ryzen 9000, Ryzen 8000/8000G, Ryzen 7000, without TDP restriction (manufacturer list)) RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 256GB (UDIMM) Expansion slots 2x PCIe 4.0 x16 (1x x16, 1x x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module) External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 3x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 6x jack, 2x antenna port RP-SMA Internal connections 1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x Serial, 1x TPM Header, 1x Chassis Intrusion Header, 1x MSI Tuning Controller Header 5-Pin Header Cooling 1x CPU fan 4-pin, 4x fan 4-pin, 1x pump 4-pin Header Lighting 2x 4-pin RGB (+12V/G/R/B, max. 3A), 2x 3-pin ARGB (+5V/DATA/GND, max. 3A, MSI V2) Buttons/Switches USB BIOS Flashback (external) Audio 7.1 (Realtek ALC897) Graphic iGPU Wireless Wi-Fi 6E (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3 RAID Level 0/1/10 (B650) Power connections 1x 24-pin ATX, 2x 8-pin EPS12V VRM 14 virtual phases (12+2), 8 real phases (6+2), PWM controller: MP2857 (max. 12 phases) MOSFETs CPU (VCORE) 12x MOSFETs SoC (VCCGT) 2x MOSFETs AUX (VCCAUX) nonexistent Lighting N/A BIOS 1x 32MB (256Mb) Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, Onboard TPM 2.0 support (AMD fTPM)
174,99 €
Matična ploča MSI PRO B650-S WIFI, AMD B650, ATX, AM5 7E26-003R
PRO B650-S WIFI Podržava procesore AMD Ryzen™ serije 7000 za stolna računala Podržava DDR5 memoriju, dvokanalni DDR5 7200+MHz (OC) Poboljšani dizajn napajanja: 12+2 Duet Rail Power System s P-PAK, dvostruki 8-pinski CPU konektori napajanja, Core Boost, Memory Boost Vrhunsko toplinsko rješenje: MOSFET toplinski jastučići ocijenjeni za 7W/mK i M.2 Shield Frozr izgrađeni su za sustav visokih performansi i rad bez prestanka Visokokvalitetni PCB: 6-slojni PCB izrađen od 2oz zadebljanog bakra Munjevito brzo iskustvo igre: PCIe 4.0 utori, Lightning Gen 4 x4 M.2 s M.2 Shield Frozr, USB 3.2 Gen 2x2 2.5G LAN s Wi-Fi 6E rješenjem: Nadograđeno mrežno rješenje za profesionalnu i multimedijsku upotrebu. Omogućuje sigurnu, stabilnu i brzu mrežnu vezu POJAČANJE ZVUKA: Nagradite svoje uši studijskom kvalitetom zvuka za najzanimljivije iskustvo igranja Stražnja ploča: 1x DisplayPort 1x 2.5G LAN 3x USB 3.2 Gen 2 10 Gbps (Tip-A) 4x USB 3.2 Gen 1 5Gbps (Tip-A) Wi-Fi / Bluetooth Audio konektori Flash BIOS gumb 1x HDMI™ 1x USB 3.2 Gen 2x2 20Gbps (Type-C)
179,99 €
MSI PRO B650-S WIFI, The MSI PRO B650-S WIFI is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 192 GB of memory 7E26-003R
Details Type Mainboard EAN 4711377132862 Manufacturer no. 7E26-003R base AM5 Max. supported CPUs 1 processor Supported models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 2x (davon: 1x PCIe x16, 1x PCIe x4) PCIe x1 1 Form factor ATX use PC power adapter ATX12V (24-Pin + 2x 8-Pin) Storage maximal 192 GB Number of bases 4x DDR5 supported standards DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz channels 2 Maximum memory ranks 8 Memory controller in CPU And Connections (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 USB-A 3.2 Gen 2 (10 Gbit/s) 3 USB-C 3.2 Gen 1 (5 Gbit/s) 4 A notice: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1. HDMI 1 DisplayPort-Out 1 Microphone 1 Line-Out 5 RJ-45 1 Bluetooth And WLAN And Connections (internal) HOURS 4 M.2 2 M.2-Module Key M M.2 interface PCIe M.2 Long 60 - 110 mm RGB LED Header 2 addressable RGB LED Header 2 4-pin PWM fan 6 Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 USB-C 3.2 Gen 1 (5 Gbit/s 1 USB 2.0 4 TPM And SATA-Controller AMD B650 directly usable RAID levels 0, 1 USB-Controller AMD B650 Onboard Graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 AND Realtek 8125BG 2.5G LAN AMD Wi-Fi 6E Accesories available Schnellanleitung, 2 Antennen, SATA Kabel, ATX-Blende Dimensions Width: 243.8mm x Height: 304.8mm
185,36 €
MSI PRO B650-S WIFI Mainboard
Serie - Mainboards Serie MSI PRO Serie Mainboard-Grundeigenschaften Hersteller MSI Chipsatz AMD B650 Formfaktor ATX Mainboard-Prozessor Prozessorfamilie AMD Prozessorsockel Sockel AM5 Unterstützte Prozessoren Ryzen 8000G, Ryzen 7000 Hinweis ohne TDP-Einschränkung Mainboard-Speicher Zahl der DIMM Slots 4x Speichertyp DDR5 unterstützter Speichertakt bis 7200 MHz Mainboard-Erweiterungsslots PCI-Express x16 (gesamt) 2x PCI-Express 4.0 x16 2x PCI-Express x1 1x (3.0) M.2 3x Mainboard-Externe Anschlüsse DisplayPortJa HDMIJa USB 3.2 Type-C 1x USB 3.1 Type-A 3x USB 3.0 3x Ethernet (LAN) 1 x 3,5mm Klinke 6x Mainboard-Interne Anschlüsse SATA 6 GB/s 4x USB 3.1 Header 1x (Typ-C) USB 3.0 Header 1 x USB 2.0 Header 2 x SeriellJa TPM-HeaderJa Chassis Intrusion-HeaderJa MSI Tuning Controller Header 5-PinJa RAID 0/1/10 Stromanschlüsse 1x 24-Pin ATX, 2x 8-Pin EPS12V Audiokanäle 7.1 Audio-Codec Realtek ALC897 Mainboard-Kühlung CPU-Lüfter 4-Pin 1x Gehäuselüfter 4-Pin 4x Pumpe 4-Pin 1x Mainboard-Netzwerk WLAN Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax) Bluetooth 5.3 Mainboard-Besonderheiten M.2-Passivkühler 1x Diagnostic LEDJa Audio+solid capacitorsJa sonstiges Onboard TPM 2.0 Unterstützung (Intel PTT) Zustand Artikelzustand Neu
187,00 €
MSI PRO B650-S WIFI ATX Mainboard AM5 DP/HDMI/BT
• ATX Mainboard, Sockel AM5, AMD RYZEN 7000 Serie-AMD RYZEN 8000 Serie • AMD B650 Chipsatz • 256 GB max. RAM, DDR5, bis zu 7200 MHz, 4 Steckplätze • 1x HDMI, 1x DP, 3x USB 3.2 • 2x PCIe 4.0, 1x PCIe 3.0, 4x SATA600, 2x M.2
190,00 €
MSI PRO B650-S WIFI motherboard
Chipset: AMD B650 / Processor socket: Socket AM5 / Memory support: 4x DDR5 / Form factor: ATX Mainboard basic properties Manufacturer MSI Chipset AMD B650 Form factor ATX Motherboard processor processor family AMD processor socket Socket AM5 Supported processors Ryzen 8000G, Ryzen 7000 Notice without TDP limitation Motherboard memory Number of DIMM slots 4x Storage type DDR5 supported memory clock up to 7200 MHz Motherboard expansion slots PCI Express x16 (total) 2x PCI Express 4.0 x16 2x PCI Express x1 1x (3.0) M.2 3x Mainboard external connections DisplayPort Yes HDMI Yes USB 3.2 Type-C 1x USB 3.1 Type-A 3x USB 3.0 3x Ethernet (LAN) 1x 3.5mm jack 6x Mainboard internal connections SATA 6GB/s 4x USB 3.1 headers 1x (Type-C) USB 3.0 headers 1x USB 2.0 headers 2x Serial Yes TPM header Yes Chassis intrusion header Yes MSI tuning controller header 5-pin Yes RAID 0/1/10 Power connections 1x 24-pin ATX, 2x 8-pin EPS12V Audio channels 7.1 Audio codec Realtek ALC897 Motherboard cooling CPU fan 4-pin 1x 4-pin case fan 4x Pump 4-pin 1x Motherboard network WIRELESS INTERNET ACCESS Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax) Bluetooth 5.3 Mainboard special features M.2 passive cooler 1x Diagnostic LED Yes Audio+solid capacitors Yes miscellaneous Onboard TPM 2.0 support (Intel PTT) Condition Item condition New
192,00 €
Protis
MSI PRO B650-S WIFI - motherboard - ATX - Socket AM5 - AMD B650
7E26-003R
169,90 €
Racunala.HR
MSI Pro B650-S WiFi, AMD B650 - Socket AM5, DDR5 7E26-003R
Motherboard form factor ATX CPU socket AM5 Motherboard Chipset AMD B650 Memory slots 4x Memory type DDR5 max. Memory 192 GB PCIe x16 slots (total) 2x PCIe x1 slots (total) 1x PCIe (4.0) x16 (mechanical) 2x PCIe (3.0) x1 1x Fan connectors (4-Pin PWM) 5x LED connectors 2x Digital RGB (3-Pin 5VDG), 2x RGB (4-Pin 5050 12VGRB) SATA 6G internal 4x M.2 (PCIe 4.0 x4) 2x USB 3.1 internal 1x USB 3.0 internal 2x USB 3.2 extern (Typ C) 1x USB 3.1 external (Type A) 3x USB 3.0 external 4x Display connectors HDMI, Display Port RJ-45 (LAN) Ports 1x 2,5 Gbit/s Wifi & Bluetooth yes Lighting no Primary colour black Secondary colour silver MBMC-548-CK
181,80 €
Telebit
MB MSI PRO B650-S Wifi, AM5, ATX, 4x DDR5, AMD B650, WL, 36mj (7E26-003R)
185,50 €
Conrad
MSI PRO B650-S Wifi matična ploča Baza #####AMD AM5 Faktor oblika (detalji) ATX
7E26-003R
224,99 €
