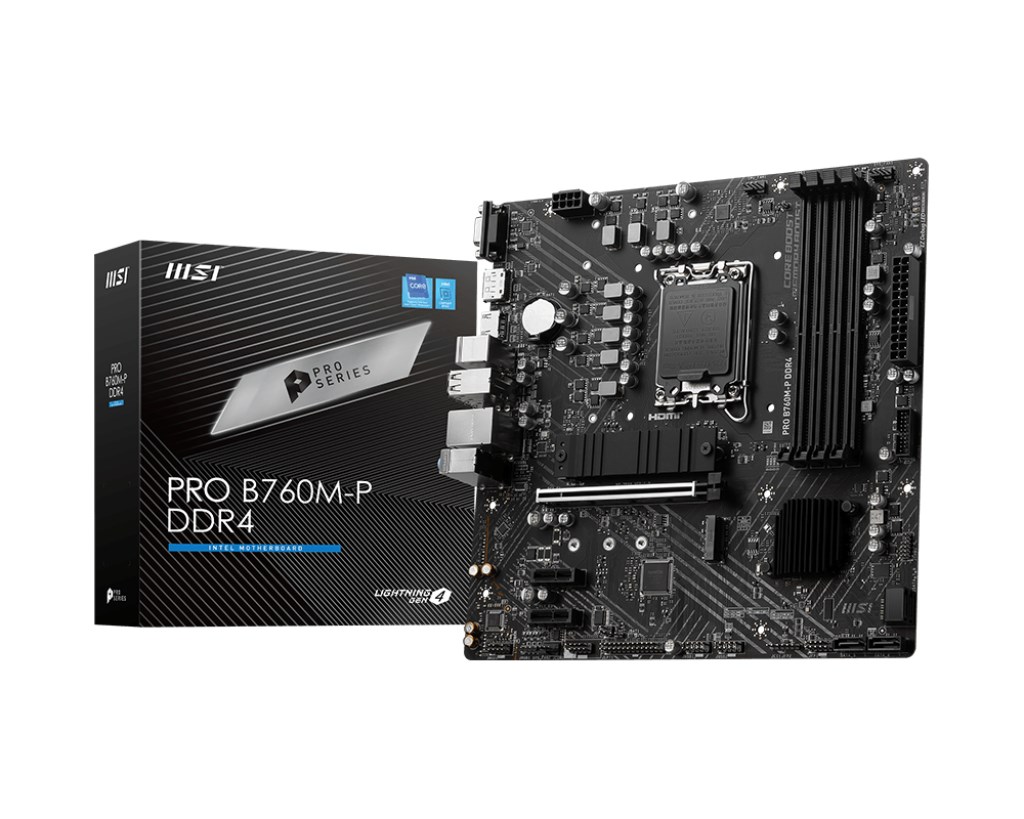

MSI PRO B760M-P DDR4 matična ploča, Socket 1700, 4x DDR4, max. 128 GB, ATX/mATX, AGP
Stavi u listu želja
Postavi obavijest o cijeni
Povijest najniže cijene
Podijeli
Prijavi grešku
MSI MB Sc LGA1700 PRO B760M-P DDR4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX
91,53 €
MB MSI Intel 1700 PRO B760M-P DDR4
7E02-001R
92,90 €
MBO 1700 MSI PRO B760M-P DDR4; Brand: MSI; Model: B760M-P DDR4; PartNo: 911-7E02-006; 0001294969 B760M-P DDR4, LGA1700, B760, DDR4, Broj utora 4, 2133 - 4800 MHz, PCIe 4.0 x16 1, SATA3 4, RAID 0, RAID 1, 8-kanalni audio, 1x 10/100/1000 Ethernet, Display Port 1, ATX, WLAN, USB 3.2 2
93,75 €
MSI PRO B760M-P DDR4 matična ploča Intel B760 LGA 1700 Mikro ATX
95,29 €
MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX
BIOS BIOS type: UEFI AMI Expansion slots Number of M.2 (M) slots: 2 PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 slots: 2 Features Windows operating systems supported: Windows 11 Windows operating systems supported: Windows 10 Motherboard chipset: Intel B760 Audio chip: Realtek ALC897 Power source type: ATX Motherboard form factor: micro ATX Product colour: Black Audio output channels: 7.1 channels Motherboard chipset family: Intel Graphics On-board graphics card: No Internal I/O ATX Power connector (24-pin): Yes Number of SATA III connectors: 4 CPU fan connector: Yes RGB LED pin header: Yes USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 TPM connector: Yes Front panel audio connector: Yes Front panel connector: Yes USB 2.0 connectors: 4 Memory Memory slots type: DIMM ECC ?ompatibility: Non-ECC Supported memory clock speeds: 2933 Supported memory clock speeds: 3600 Supported memory clock speeds: 2400 Supported memory clock speeds: 4600 Supported memory clock speeds: 3800 Supported memory clock speeds: 3333 Supported memory clock speeds: 3200 Supported memory clock speeds: 2666 Supported memory clock speeds: 4266 Number of memory slots: 4 Supported memory types: DDR4-SDRAM Supported memory clock speeds: 3733 Supported memory clock speeds: 4400 Supported memory clock speeds: 4000 Supported memory clock speeds: 4800 Memory channels: Dual-channel Supported memory clock speeds: 2133 Supported memory clock speeds: 4200 Supported memory clock speeds: 3400 Maximum internal memory: 128 GB Supported memory clock speeds: 3466 Supported memory clock speed (max): 4800 MHz Network Wi-Fi: No Ethernet interface type: 2.5 Gigabit Ethernet Ethernet LAN: Yes Processor Processor socket: LGA 1700 Compatible processor series: Intel® Celeron® Compatible processor series: Intel® Pentium® Gold Supported processor sockets: LGA 1700 Processor manufacturer: Intel Maximum number of SMP processors: 1 Rear panel I/O ports USB 2.0 ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 DisplayPort version: 1.4 DisplayPorts quantity: 1 HDMI ports quantity: 1 HDMI version: 1.4 Storage controllers RAID levels: 5 RAID levels: 1 RAID support: Yes RAID levels: 10 RAID levels: 0 Supported storage drive interfaces: M.2, SATA III Weight & dimensions Width: 243.8 mm Depth: 243.8 mm PLYMIS1700043
98,10 €
MSI PRO B760M-P, DDR4, Intel B760, s.1700, 7E02-001R
Form factor µATX Plinth Intel 1700 Chipset Intel B760 CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000 RAM 4x DDR4 DIMM, dual PC4-38400U/DDR4-4800 (OC), max. 128GB (UDIMM) Expansion slots 1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242) External connections 1x VGA (iGPU), 1x HDMI 1.4 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 keyboard, 1x PS/2 mouse Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM header, 1x chassis intrusion header Header Cooling 1x CPU fan 4-pin, 2x fan 4-pin Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A) Buttons/Switches N/A Audio 7.1 (Realtek ALC897) Graphic iGPU Wireless N/A RAID Levels 0/1/5/10 (B760) Multi-GPU N/A Electrical connections 1x 24-pin ATX, 1x 8-pin EPS12V VRM 7 virtual phases (6+1), 4 real phases (3+1), PWM controller: RT3628AE (max. 9 phases) MOSFETs CPU 6x 55A SM4337/SM4503 MOSFETs SoC 2x 55A SM4337/SM4503 Lighting N/A BIOS 1x 32MB (256Mb) Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, Onboard TPM 2.0 support (Intel PTT)
98,98 €
MBO 1700 MSI PRO B760M-P DDR4
B760M-P DDR4, LGA1700, B760, DDR4, Broj utora 4, 2133 - 4800 MHz, PCIe 4.0 x16 1, SATA3 4, RAID 0, RAID 1, 8-kanalni audio, 1x 10/100/1000 Ethernet, Display Port 1, ATX, WLAN, USB 3.2 2
99,69 €
MSI PRO B760M-P DDR4
Matična ploča MSI PRO B760M-P DDR4 nudi najnoviju tehnologiju i pouzdanost za one koji žele izgraditi snažan i stabilan sustav, bilo za kućnu ili uredsku upotrebu. Ova matična ploča ima Intel B760 čipset, koji osigurava kompatibilnost s 12., 13. i 14. generacijom Intel Core procesora, jamčeći iznimne performanse i fleksibilnost. Podrška za DDR4 memoriju omogućuje korisnicima da iskoriste prednosti brže i učinkovitije RAM tehnologije, koja povećava performanse i stabilnost sustava. MSI PRO B760M-P DDR4 također ima PCIe x16 utor koji podržava najnovije grafičke kartice, tako da korisnici mogu uživati u izvrsnim grafičkim performansama bilo u igrama ili grafičkom dizajnu. Ugrađeni M.2 utori omogućuju brzu pohranu podataka, omogućujući korištenje NVMe SSD-ova velike brzine koji značajno smanjuju vrijeme pokretanja i učitavanja aplikacija. Ova značajka može biti posebno korisna za one koji žele brzo i učinkovito radno okruženje. Matična ploča MSI PRO B760M-P DDR4 ističe se i po pitanju pouzdanosti i izdržljivosti, zahvaljujući kvalitetnim komponentama i sofisticiranim rješenjima za raspršivanje topline koje koristi MSI. Ove značajke osiguravaju izvrsnu dugoročnu izvedbu matične ploče, čak i uz intenzivnu upotrebu. Sve u svemu, MSI PRO B760M-P DDR4 izvrstan je izbor za one koji traže pouzdanu matičnu ploču usmjerenu na performanse koja podržava najnovije tehnologije i komponente. Bilo da se radi o igricama, poslu ili čak stvaranju multimedijskog sadržaja, ova matična ploča zadovoljava sve vaše potrebe.
100,96 €
MSI PRO B760M-P DDR4
101,00 €
MBO 1700 MSI PRO B760M-P DDR4
B760M-P DDR4, LGA1700, B760, DDR4, Broj utora 4, 2133 - 4800 MHz, PCIe 4.0 x16 1, SATA3 4, RAID 0, RAID 1, 8-kanalni audio, 1x 10/100/1000 Ethernet, Display Port 1, ATX, WLAN, USB 3.2 2
102,00 €
MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX
28-PLYMIS1700043
103,20 €
MBO 1700 MSI PRO B760M-P DDR4
B760M-P DDR4, LGA1700, B760, DDR4, Broj utora 4, 2133 - 4800 MHz, PCIe 4.0 x16 1, SATA3 4, RAID 0, RAID 1, 8-kanalni audio, 1x 10/100/1000 Ethernet, Display Port 1, ATX, WLAN, USB 3.2 2
106,00 €
Matična ploča MSI PRO B760M-P DDR4 (micro ATX, Socket Intel 1700, Intel B760)
PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.The PRO series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide user's incredib
106,02 €
MSI PRO B760M-P DDR4 , MSI PRO B760M-P DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR4-SDRAM, 128 GB 7E02-001R
MSI PRO B760M-P DDR4. Proizvođač procesora: Intel, Utor za procesor: LGA 1700, Kompatibilni procesori: Intel® Celeron®, Intel® Pentium® Gold. Podržani tipovi memorije: DDR4-SDRAM, Maksimalna količina interne memorije: 128 GB, Tip memorijskih utora: DIMM. Podržana sučelja pogona za pohranu: M.2, SATA III, RAID tipovi: 0, 1, 5, 10. Vrsta Ethernet sučelja: 2.5 Gigabit Ethernet. Komponenta za: PC/osobno računalo, Dimenzije matične ploče: Mikro ATX, Obitelj čipseta matične ploče: Intel
109,85 €
MSI PRO B760M-P DDR4
Serie - Mainboards Serie MSI PRO Serie Mainboard-Grundeigenschaften Hersteller MSI Chipsatz Intel® B760 Formfaktor Micro-ATX Mainboard-Prozessor Prozessorfamilie Intel Prozessorsockel Sockel 1700 Mainboard-Speicher Zahl der DIMM Slots 4x DIMM-Format 288-pin DIMM Maximaler Hauptspeicher 128 GB Speichertyp DDR4 Non-ECC, Un-bufferedJaMainboard-Erweiterungsslots PCI-Express x16 (gesamt) 1x PCI-Express 4.0 x16 1x PCI-Express x1 2x (4.0) M.2 2x Mainboard-Externe Anschlüsse DisplayPortJa HDMIJa USB 3.2 Type-C 1x USB 3.0 1x USB 2.0 4x PS/2 1 x Ethernet (LAN) 1 x 3,5mm Klinke 3x Mainboard-Interne Anschlüsse SATA 6 GB/s 4x USB 3.0 Header 1 x USB 2.0 Header 2 x SeriellJa TPM-HeaderJa Chassis Intrusion-HeaderJa RAID 0/1/5/10 Stromanschlüsse 1x 24-Pin ATX, 1x 8-Pin EPS12V Audiokanäle 7.1 Audio-Codec Realtek ALC897 Mainboard-Kühlung CPU-Lüfter 4-Pin 1x Gehäuselüfter 4-Pin 2x Mainboard-Beleuchtung RGB-Header 4-Pin 1x Mainboard-Netzwerk LAN Controller GB LAN (Realtek RTL8111H) Transferrate 10/100/1000 Mb/s Mainboard-Besonderheiten M.2-Passivkühler 1x Diagnostic LEDJa Audio+solid capacitorsJaZustand Artikelzustand Neu
113,00 €
MSI Pro B760M-P DDR4, Intel B760-Mainboard - Socket 1700, DDR4 7E02-001R
Motherboard form factor Micro-ATX CPU socket 1700 Motherboard Chipset Intel B760 Memory slots 4x Memory type DDR4 max. Memory 128 GB PCIe x16 slots (total) 1x PCIe x1 slots (total) 2x PCIe (4.0) x16 (mechanical) 1x PCIe (4.0) x1 2x PCI-Slots Fan connectors (4-Pin PWM) 3x LED connectors 1x RGB (4-Pin 5050 12VGRB) SATA 6G internal 4x M.2 (PCIe 4.0 x4) 2x M.2 (PCIe 4.0 x4 / SATA 6G) 1x USB 3.0 internal 2x USB 3.1 external (Type C) 1x USB 3.0 external 1x Display connectors VGA (D-Sub), HDMI, Display Port RJ-45 (LAN) Ports 1x 1 Gbit/s Wifi & Bluetooth no Lighting no Primary colour black Secondary colour silver MBMC-531-CK
114,30 €
MSI PRO B760M-P DDR4
MSI PRO B760M-P DDR4 Osnovna svojstva matične ploče Proizvođač - MSI Čipset - Intel® B760 Forma - Micro ATX procesor matične ploče Obitelj procesora - Intel Procesorska utičnica - utičnica 1700 memorija matične ploče Broj DIMM utora - 4x DIMM format - 288-pinski DIMM Maksimalna glavna memorija - 128 GB Vrsta memorije - DDR4 Non-ECC, Unbuffered - Da Utori za proširenje matične ploče PCI Express x16 (ukupno) - 1x PCI Express 4.0 x16 - 1x PCI Express x1 - 2x (4.0) M.2 - 2x Vanjski priključci matične ploče DisplayPort - Da HDMI - Da USB 3.2 Type-C - 1x USB 3.0 - 1x USB 2.0 - 4x PS/2 - 1x Ethernet (LAN) - 1x 3,5 mm utičnica - 3x Unutarnji priključci matične ploče SATA 6Gb/s - 4x USB 3.0 zaglavlja - x1 USB 2.0 konektori - 2x Serijski - Da TPM zaglavlje - Da Zaglavlje upada u šasiju - Da RAID - 0/1/5/10 Konektori za napajanje - 1x 24-pinski ATX, 1x 8-pinski EPS12V Audio kanali - 7.1 Audio kodek - Realtek ALC897 Hlađenje matične ploče CPU ventilator 4-pinski - 1x Kućišni ventilator 4-pinski - 2x Osvjetljenje matične ploče RGB zaglavlje 4-pinsko - 1x mreža matične ploče LAN kontroler - UK LAN (Realtek RTL8111H) Brzina prijenosa - 10/100/1000 Mb/s Specifičnosti matične ploče M.2 pasivni hladnjak - 1x Dijagnostički LED - Da Audio+solid kondenzatori - Da Stanje Stanje: Novo
116,00 €
Telebit
MB MSI PRO B760M-P DDR4, LGA 1700, micro ATX, 4x DDR4, Intel B760, 24mj (7E02-001R)
108,03 €
Fibar-Informatika
MSI PRO B760M-P DDR4
B760M-P DDR4, LGA1700, B760, DDR4, Broj utora 4, 2133 - 4800 MHz, PCIe 4.0 x16 1, SATA3 4, RAID 0, RAID 1, 8-kanalni audio, 1x 10/100/1000 Ethernet, Display Port 1, ATX, WLAN, USB 3.2 2
121,75 €
Conrad
MSI PRO B760M-P DDR4 matična ploča Baza Intel® 1700 Faktor oblika (detalji) Micro-ATX Set čipova matične ploče Intel® B760
7E02-001R
134,99 €
